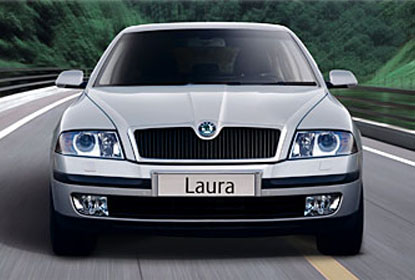

| Skoda Laura 1.9 TDI Specification |
|
Technical Specifications
| Engine |
|---|
| Engine type |
turbocharged diesel engine, turbocharger with self-aligning blades, in-line, liquid cooling system, high-pressure direct injection system, OHC, transverse in front |
| Cylinders |
4 |
| Displacement [cm3] |
1896 |
| Max. power/revs [kW(bhp) at rpm] |
77(105)/4000 |
| Max. torque/revs [Nm at rpm] |
250/1900 |
| Fuel injection system |
electronically controlled high-pressure direct injection system - pump nozzle |
| Emission compliance |
Bharat Stage III |
| Transmission |
|---|
| Wheel drive |
front wheel drive |
| Clutch |
hydraulic single dry clutch disc with membrane spring, asbestos free |
| Transmission |
manual 5-speed fully synchronized |
| Chassis |
|---|
| Front axle |
McPherson suspension with lower triangular links and torsion stabiliser |
| Rear axle |
multi-element axle, with one longitudinal and three transverse links, with torsion stabiliser |
| Braking system |
hydraulic dual-diagonal circuit braking system vacuum assisted with Dual Rate system |
| Brake - front |
disc brakes with inner cooling, with single/piston floating caliper |
| Brake - rear |
disc brakes |
| Steering system |
direct rack and pinion steering with electro mechanic power steering |
| Wheels |
6.5J x 16 inch |
| Tyres |
205/55 R16 |
| Outside dimensions |
|---|
| Length [mm] |
4572 |
| Width [mm] |
1769 |
| Height [mm] |
1485 |
| Wheel base [mm] |
2578 |
| Ground clearance [mm] |
164 |
| Inside dimensions |
|---|
| Storage capacity |
560 |
| Storage capacity with rear seatback folded down |
1350 |
| Weights |
|---|
| Kerb weight [kg] |
1310 |
| Gross weight [kg] |
1970 |
| Liquids |
|---|
| Tank capacity [l] |
55 |
| Body |
|---|
| Body |
5 door, two compartment, 5 seater |
|
|
|
|
|
