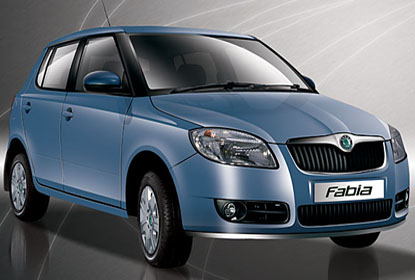

| Skoda Fabia 1.2 Petrol Specification |
|
Technical Specifications
| Engine |
|---|
| Engine type |
petrol engine, in-line, liquid cooling system, DOHC, transverse in front |
| Cylinders |
3 |
| Displacement [cm3] |
1198 |
| Max. power/revs [kW(bhp) at rpm] |
51(70)/5400 |
| Max. torque/revs [Nm at rpm] |
108/3000 |
| Fuel injection system |
electronic multipoint fuel injection MPI |
| Ignition |
control unit controlled electronic ignition system |
| Emission compliance |
Bharat Stage III |
| Transmission |
|---|
| Wheel drive |
front wheel drive |
| Clutch |
hydraulic single dry clutch disc with membrane spring, asbestos free |
| Transmission |
manual 5-speed fully synchronized |
| Chassis |
|---|
| Front axle |
McPherson suspension with lower triangular links and torsion stabiliser |
| Rear axle |
compound link crank-axle |
| Braking system |
hydraulic dual-diagonal circuit braking system vacuum assisted with Dual Rate system |
| Brake - front |
disc brakes with inner cooling, with single/piston floating caliper |
| Brake - rear |
drum brakes |
| Steering system |
direct rack and pinion steering with electrohydraulic power steering |
| Wheels |
6.0J x 14 inch |
| Tyres |
185/60 R14 |
| Outside dimensions |
|---|
| Length [mm] |
3992 |
| Width [mm] |
1642 |
| Height [mm] |
1513 |
| Wheel base [mm] |
2462 |
| Ground clearance [mm] |
146 |
| Inside dimensions |
|---|
| Storage capacity |
300 |
| Storage capacity with rear seatback folded down |
1163 |
| Weights |
|---|
| Kerb weight [kg] |
1050 |
| Gross weight [kg] |
1565 |
| Liquids |
|---|
| Tank capacity |
45 |
| Body |
|---|
| Body |
5 door, two compartment, 5 seater |
|
|
|
|
|
